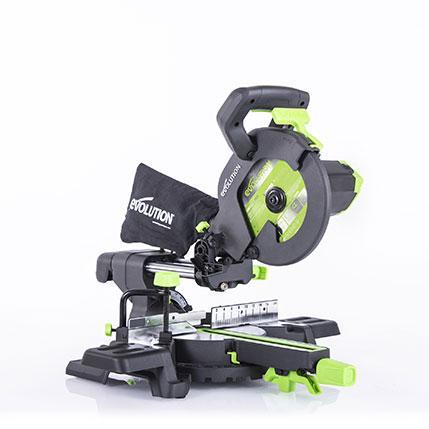

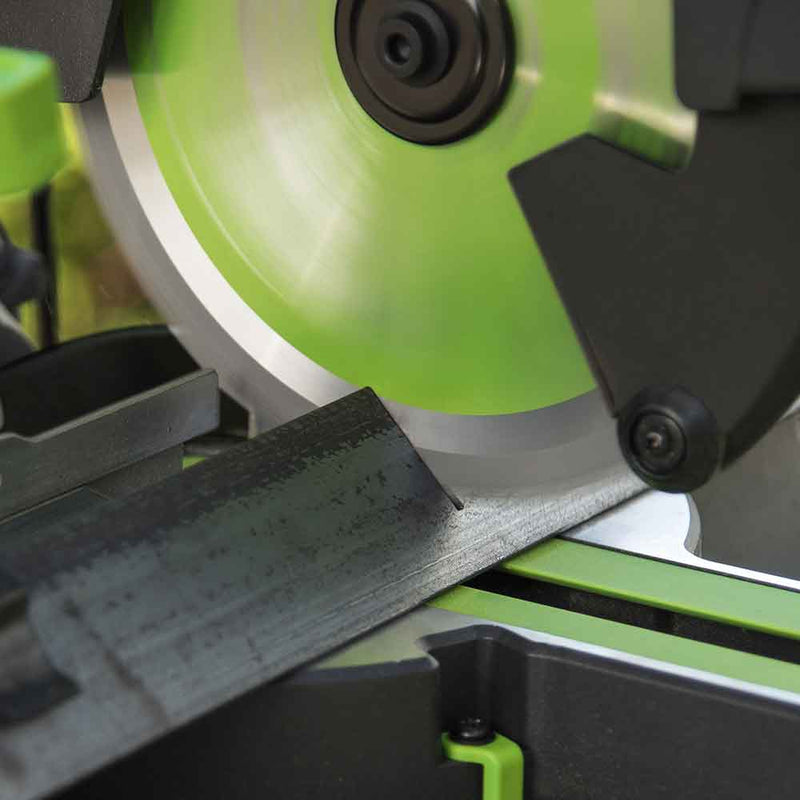

Multi-Material cutting technology. One saw, one blade, cuts all.*
Accurate cutting with laser guidance, adjustable depth of cut and 9 positive mitre stops.
Reliable, smooth, square cut every time in a variety of materials.
Powerful 1200W hi-torque motor with optimised gearbox & blade system.
Sliding functionality provides a 230 x 65mm cross-cut capacity, allowing you to glide through materials with ease.
Positive mitre stops both left & right at 0˚, 15, 22.5, 30, and 45˚.
Ergonomic trigger handle designed for left and right-handed use.
Connect this with Evolution's Mitre Saw Stand, to give you the freedom to perform repeated length cutting on wide and long materials with precision.
The Evolution 210mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
Japanese Tungsten-Carbide-Tipped (TCT) 210mm blade included.
Specifications
Motor (240V 50Hz):
1200W
Speed No Load:
3750 rpm
Max. Bevel (Left):
45°
Max. Mitre:
50° - 50°
Cable Length:
2m
Blade Dia.:
210mm
No. of Teeth:
20
Bore:
25.4mm
Kerf:
1.7mm
Max. Cross Cut (0° x 0°):
230mm x 65mm
Max. Bevel Cut (0° x 45°):
230mm x 38mm
Max. Mitre Cut (45° x 0°):
150mm x 65mm
Max. Compound Cut (45° x 45°):
150mm x 38mm
Mild Steel Plate (Max. Thickness):
3mm
Mild Steel Box Section (Max. Wall Thickness):
3mm
Product Dimensions:
314mm x 575mm x 610mm
Packaging Dimensions:
420mm x 290mm x 310mm
Product Weight:
10.9 kg
Packaged Weight:
12.8 kg
Sound Pressure Level LPA:
220-240V: 96.5dB(A)
Sound Power Level LWA:
220-240V: 109.5dB(A)
Uncertainty K:
KpA & KWA: K=3 dB(A)
Items Supplied
20T Multi-Material TCT Blade
Hold Down Clamp
Machine Table Extensions
Double Ended Hex Key (M6 & M4)
Rotary Table And Neck
Cutting Head
Carriage Slides
Mitre Locking Knob
Mains Cable Guide/Clamp (1 Fitted)
Self Tapping Cap Screw
Socket Headed Screws
Cable Clamp Component
Laser Lens Cap (Fitted)
